Oil Spill Response Equipment
Preparing for Major Oil Spills
PAJ lends large, high-performance equipment in container units

For mechanical recovery of spilt oil in oceans and for effective protection of shorelines, PAJ has mainly installed oil containment boom, oil skimmers and tentative storage tanks in stockpile bases.

Also, based on the lessons learnt from the past major oil spill incidents, such as the case in Alaska or in the Arabian Gulf, large and high-performance equipment, which is rare in Japan, has been selected for the bases. Each piece of the equipment, together with its accessories, is stored in a dedicated containers to facilitate prompt lending and transportation in an emergency. In principle, PAJ will lend the equipment by the container.

*Please note that in the following equipment description, some of the same equipment might present different size and weight for year purchased or the change of container for better storage.

1. Inflatable Flotation Boom
Ro-Boom 1800
(Ro-Clean Desmi, Denmark)

Size: Freeboard: 60 cm, Draft: 90 cm, Length: 250 m
Container: 3.66 mL × 2.44 mW × 2.59 mH
Total Weight: 7.165 tons (weight of a container included)
Ro-Boom 1800 is manufactured in heavy duty neoprene rubber with Hypalon external skin and is fitted with stainless steel fittings and hot galvanized ballast / tension chain, secured with reinforced chain attachment points. Internal fiberglass rods with stainless steel brackets ensure optimum skirt profile under tow.
Uni Boom Z1500
(Enviro Team, Norway)

Size: Freeboard: 60 cm, Draft: 90 cm, Length: 250 m
Container: 4.03 mL × 2.43 mW × 2.59 mH
Total Weight: 6.1 tons (weight of a container included)
Hi-Sprint 1500
(Vikoma, UK)

Floating body of the boom can be inflated by a single infltator.
Specification
Freeboard: 60 cm, Draft: 90 cm, Length: 250 m, Weight: 6 kg/m
Connector type: Unicon
Fabric: Double-sided neoplene coated nylon
The boom is stored together with an inflator and other attachment in 12 ft container (3.7 mL × 2.4 mW × 2.6 mH)
Total Weight: 6.18 tons (weight of a container included)
Hd Sprint Boom
(Vikoma, UK)

The boom can be deployed, inflating floating body by a single infltator.
Specification
Freeboard: 60 cm, Draft: 90 cm, Length: 250 m / 14 ft container, Weight: 14.25 kg/m
Connector type: Unicon
Fabric: double-sided neoplene coated nylon
The boom is stored together with an inflator and other attachment in 14 ft container (4.27 mL × 2.44 mW × 2.75 mH)
Total Weight: 7.25 tons (weight of a container included)

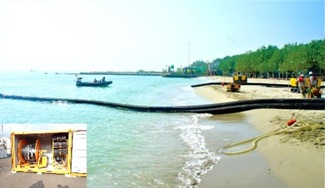

Beach Boom
(Vikoma, UK)

When afloat, Shoreguardian has excellent wave following characteristics because of its air buoyancy / water ballast tube design. When aground, the vertical perforated inner membrane acts as a tension member and prevents the boom from rolling when grounded. Due to these features, Shoreguardian has excellent stability and sealing characteristics. Shoreguardian 120 m (12 units × 10 mL) and Sentinel Boom 200 m (10 units × 20 mL) will be contained with attachment in a container.
Container: 3.05 mL × 2.44 mW × 2.59 mH
Total Weight: 3.25 tons (weight of a container included)
Ro-Boom Beach 800+650
(Ro-Clean Deami, Denmark)

Ro-Boom Beach 800: Freeboard: 31 cm, Draft: 32 cm, Length: 120 m
Ro-Boom Beach 650: Freeboard: 20 cm, Draft: 30 cm, Length: 200 m
Container: 3.00 mL × 2.44 mW × 2.50 mH
Total Weight: 4.03 tons (weight of a container included)
Rubbermax V-Sweep
(ELASTEC, U.S.A)

ELASTEC Rubbermax V-Sweep System is a Wedge-shaped "Open Mouth" type oil boom manufactured from heavy-duty vulcanized Nitrile rubber for easy single ship operations with a custom-made lightweight aluminum outrigger or Boomvane. This system includes 4-stroke backpack inflator and integrated power unit and control stand to operate boom reel.
Freeboard: 51 cm, Draft: 71 cm, Length: 40 m / 12 ft container (3.66 mL × 2.44 mW × 2.44 mH)
Total Weight: Approx. 2.8 tons (weight of outriggers, and a container included)
Current Buster 4
(NOFI, Norway)

Current Buster is for collecting and recovering spilled oil. Pulled by two towing vessels, the oil boom can gather roughly 30 kl of oil in the oil sump at the rear, and a recovery pump can be inserted in the oil sump to recover the oil. The maximum towing speed of 4 knots allows fast oil recovery.
Freeboard: 60 cm, Draft: 45 cm, Length: 72 m
Container: 2.99 mL × 2.44 mW × 2.60 mH
Total Weight: 3.8 tons (weight of a container included)
KO-10U, KO-07U
(Mirai Techno / Kaneyasu, Japan)

KO-10U and KO-07U are inflatable flotation boom to collect spilled oil, attached to sides of a boat with outriggers. Each unit of outriggers is lightweight so that the boom can be installed by a small group of staff and applicable to various types of ships.
KO-10U
Size: Freeboard: 30 cm, Draft: 40 cm, Length: 21 m (7 m × 3)
Container: 12 ft (3.72 mL × 2.44 mW × 2.59 mH)
Total Weight: 2.1 tons (outriggers, attachment and a container included)
KO-07U
Size: Freeboard: 30 cm, Draft: 40 cm, Length: 7 m
Boom storage case: 0.7 mL × 1.2 mW × 0.3 mH
Total Weight: 411 kg (weight of oil boom, outriggers, mounting bracket, attachment and a storage case included)
2. Oil Skimmer
Ocean Skater
(ELASTEC, USA)

An user-friendly weir oil skimmer with shallow draft and lightweight construction. All component of the equipment is stored in a 20 ft storage container (6.06 mL × 2.44 mW × 2.59 mH).
Capacity: 300 kl/h
Container: 20 ft (6.06 mL × 2.44 mW × 2.59 mH)
Total Weight: 4.5 tons (weight of a container included)
Desmi Terminator Skimmer
(Ro-Clean Desmi, Denmark)

This Terminator Skimmer can be controlled directionally with two thrustors by radio wave remote control and has a special belt skimmer attachment which enables the recovery of highly viscous oils that do not flow well into a conventional weir.
System: Weir
Capacity: 125 kl/h
Container: 3.66 mL × 2.44 mW × 2.59 mH
Total Weight: Approx. 3.2 tons (weight of a container included)
LWS 50
(Lamor, Finland)

System: Brush, Weir
Capacity: 60 kl/h
Apply: Middle-High Viscosity oil
Container: 2.99 mL × 2.44 mW × 2.59 mH
Total Weight: 3.1 tons (weight of a container included)
Sea Skater
(ELASTEC, USA)

System: Weir
Capacity: 118 kl/h
Apply: Middle-High Viscosity oil
Container: 3.6 mL × 2.4 mW × 2.4 mH
Total Weight: 3.0 tons (weight of a container included)
Komara Star
(Vikoma, UK)

Komara Star is able to operate across a wide spectrum of oils from high viscosity crude and fuel oils to medium viscosity oils. Skimmer and pump are not adversely affected by the small debris commonly found in an oil spill.
System: Disk
Capacity: 22 kl/h
Container: 3.0 mL × 2.4 mW × 2.6 mH
Total Weight: 3.52 tons (weight of a container included)
rbs-triton-60RBS TRITON 60
(Aqua-Guard, Canada)

System: Weir, drum
Capacity: 63 kl/h
Apply: Low-High viscosity oil
Container: 3.66 mL x 2.44 mW x 2.59 mH
Total Weight: 2.5 tons (weight of a container included)
Komara 15 Duplex
(Vikoma, UK)

System: Disk, Brush
Capacity: 14.4 kl/h
Apply: Low-Middle Viscosity oil
Container: 3.05 mL × 2.44 mW × 2.59 mH
Total Weight: 3.3 tons (weight of a container included)
TDS-118
(ELASTEC, USA)
TDS-118 skimmer can be easily carried and operated by two men. TDS-118 features heavy-duty high density Polyethylene drums and serves as rotating oleophilic element that selectively recovers the oil from water and provides buoyancy for the skimmer. This skimmer will recover up to 16 kl/h of oil and is able to recover a wide range of oils and sheen, from vegetable oil, diesel to crude oils.
System: Grooved Drum
Capacity: 16 kl/h
Apply: Vegetable oil, Diesel to crude oils
10 ft Container (3.0 mL × 2.4 mW × 2.6 mH)
Total Weight: 2.0 tons (weight of a container included)
MINI MAX 25 SYSTEM
(LAMOR, Finland)
4 units each of Powerpack, Disk / Brush Skimmer, Rock Cleaner, and Weir Fixed Suction Head are stored inside a container with the size of L 2.97 m × W 2.44 m × H 2.59 m.
Total Weight: Approx. 2.5 tons (weight of a container included).
The approx. 23 kg lightweighted Disk / Brush Skimmer (Maximum recovery capability of 25 kl/h) with water content of only 2 % allows a one-man operation. Also by exchanging the attachment, it will achieve its purpose by the seashore. Overall, this product is a solution to the labor-intensive method up till this point.
Crane Sweep System
Crane Sweep System
(Ro-Clean Desmi, Denmark)

Crane Sweep System provides several operational advantages; it allows the Desmi DOP-250 to be easily repositioned and forced or swept through the heavy oil layers -- effectively force feeding the pump. The hydraulic cylinder the end of the knuckle crane allows the orientation of the pump to be adjusted, the pump along with the hoses can be lifted clear of the oil without manual assistance.
Container: 3.59 mL × 2.44 mW × 2.59 mH
Total Weight: Approx. 3.5 tons (weight of a container included)
TDS 200 & Crane
(FOILEX, Sweden / Kaneyasu, Japan)
With crane, mobility of TDS 200 is enhanced to be used as oil skimmer or oil transfer pump at quay or coast. The crane can be used alone as mini crawler crane, too.
Capacity: Max. 70 kl/h
Container: 12 ft (3.66 mL × 2.44 mW × 2.59 mH)
Total Weight: Approx. 4.6 tons (weight of a container included)
Beach Cleaner
Portable Skimmer System
(LAMOR, Finland)

System: Brush
Capacity: 9.7-30 kl/h
Apply: Low-High Viscosity oil
Container: 2.44 mL × 2.20 mW × 2.26 mH
Total Weight: 1.3 tons (weight of attachment and a container included)
Mini-Vac System
(Vikoma, UK)

Mini-Vac System can be easily carried both the vacuum system and the transfer pump unit by two men, and it is capable of recovering a wide range of different oils. Both modular units employ a diesel engine thereby allowing for safe operation at the spill site.
Capacity: 24 kl/h
Weight: 45 kg per unit
12 ft Container: 3.66 mL × 2.44 mW × 2.59 mH
*Two units per container
Total Weight: 2.5 tons (weight of a container included)
Mini Vac II
(ELASTEC, U.S.A)

A portable vacuum system that offers powerful vacuum abilities and mobility. It is designed for recovering solid materials and dry waste with up to 50 mm diameter as well as oil. As the system is wheeled, you can carry it without heavy equipment.
Recovered materials can be directly poured into drums which are easy to transport and store. With optional vacuum hopper, recovered materials can be transferred to temporary storage tanks or vacuum trucks.
Capacity: 48 kl/h
Container: 12 ft (3.66 mL × 2.44 mW × 2.59 mH)
*Two units per container
Total Weight: Approx. 3 tons (weight of a container included)
3. Oil bag, Tank
Lancer Barge Model 100
(Inflatable Barge)
(Lancer, New Zealand)

Lancer Barge Model 100 is a towed open tank, which is used by inflating the buoyancy tube with an air blower. The tank capacity is 100 m³, and the maximum towing speed is 5 knots when fully loaded. The tank is made of Hypalon, which is an extremely weather-resistant and durable material. Stored in a container (2.0 mL × 2.0 mW × 2.0 mH).
Size: 15.5 mL × 5.5 mW × 2.1 m Draft, when fully inflated.
Weight (Body): 635 kg
Total weight: 1,205 kg (weight of a container included)
Maximum towing speed 10 knots when empty, 5 knots, fully loaded.
LSB100, LSB50, LSB25, LSB10
(LAMOR, Finland)
Capacity: 100 m³, 50 m³, 25 m³ 10 m³
Size:
LSB100 / 15.20 mL × 5.35 mW × 2.8 m Draft
LSB50 / 11.00 mL × 4.60 mW × 2.0 m Draft
LSB25 / 9.00 mL × 3.96 mW × 1.7 m Draft
LSB10 / 7.50 mL × 3 mW × 1.3 m Draft
Container: 12 ft container (3.66 mL × 2.44 mW × 2.59 mH)
Weight (Body):
LSB100 / 800 kg
LSB50 / 450 kg
LSB25 / 292 kg
LSB10 / 200 kg
Total Weight (weight of a container included):
LSB100 / 2,900 kg
LSB50 / 2,530 kg
LSB25 / 2,342 kg
LSB10 / 2,250 kg
Maximum towing speed 10 knots when empty, 4.5 knots, fully loaded.
NOFI Oil Barge 75
(NOFI, Norway)

Storage Capacity: 75 kl
Size: 12.0 mL × 5.0 mW × 2.1 m (Draft), Weight (Body): 510 kg
Container: 2.30 mL × 1.69 mW × 1.65 mH
Total weight: 1,205 kg
Maximum towing speed 15 knots when empty, 5 knots, fully loaded.
Lancer Barge Model 25
(Lancer, New Zealand)

Lancer Barge Model 25 is a towed open tank, which is used by inflating the buoyancy tube with an air blower. The tank capacity is 25 m³, and the maximum towing speed is 5 knots when fully loaded. The tank is made of Hypalon, which is an extremely weather-resistant and durable material. Stored in a wooden container (1.23 mL × 1.23 mW × 1.37 mH, 500 kg).
Size: 9.8 mL × 3.3 mW × 1.4 m (Draft), Weight (Body): 470 kg
Maximum towing speed 10 knots when empty, 5 knots, fully loaded.

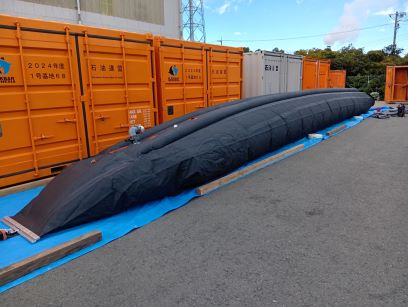

FROST, Floating Oil Storage Barge
(Vikoma, UK)
Capacity: 10 m³
Size: 7.5 mL × 3.0 mW × 1.3 m Draft
Weight (Body): 150 kg
Maximum towing speed 10 knots when empty, 4.5 knots, fully loaded.
*Stored together with other equipment in 12 ft container
FST1000, Floating Storage Tank
(SLICKBAR, Indonesia)
Capacity: 10 m³
Size: 7.1 mL × 3.0 mW × 0.5 mH
Weight (Body): 150 kg
Maximum towing speed 10 knots when empty, 4 knots, fully loaded.
*Stored together with other equipment in 12 ft container
RO-TANK 25
(Ro-Clean Desmi, Denmark)

RO-TANK 25 is a tank for temporarily storing recovered Oil.
Size: 21.2 mL × 2.0 mW × 0.8 mH
Storage capacity: 25 kl
Total weight: Approx. 500 kg
Fastank
(Fast Engineering, UK)

Small packaged weight and volume and High level of chemical resistance; High level of chemical resistance; compatibility chart available, Aluminium frame ensures upright walls, Smooth profile facilitates easy cleaning.
・9 tons type (Fastank 2000): 3.2 m in diameter, 1.5 m high
・5 tons type (Fastank 5): 2.3 m in diameter, 1.25 m high
・1.5 tons type (Fastank Rapide): 1.72 mL × 1.67 mW × 0.60 mH (Net weight: 15 kg)
9 tons & 5 tons type have their own dedicated storage box each.
(1.60 mL × 0.46 mW × 0.50 mH)
9 tons type: Net weight: 72 kg
5 tons type: Net weight: 49 kg
4. Other Equipment
Oil Snare
(Parker Systems, Inc., USA)

Oil Snare can be captured max 414 kg of heavy viscosity oil per one pack. Capture Capacity: 20-60 times its own weight, depending on the viscosity of the oil.
Weight: 7.7 kg (15 m) / pack. Size: 33 cm × 79 cm
